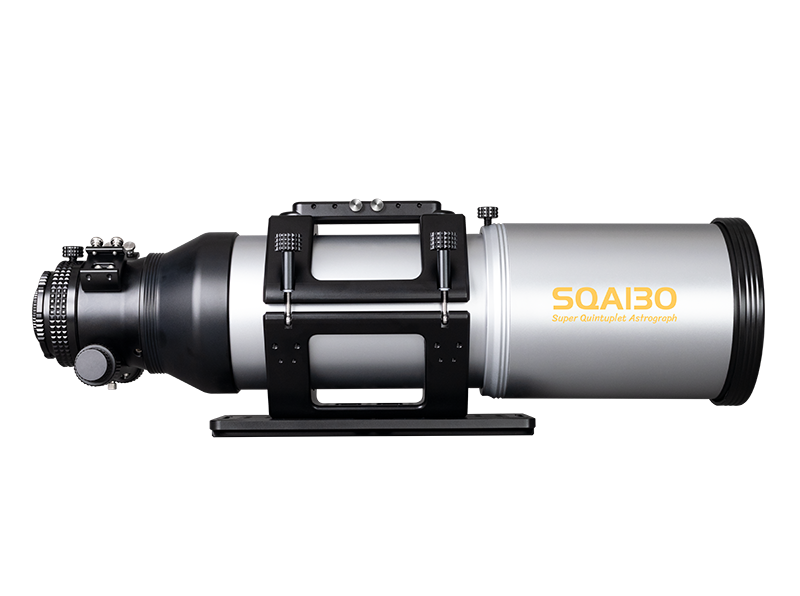

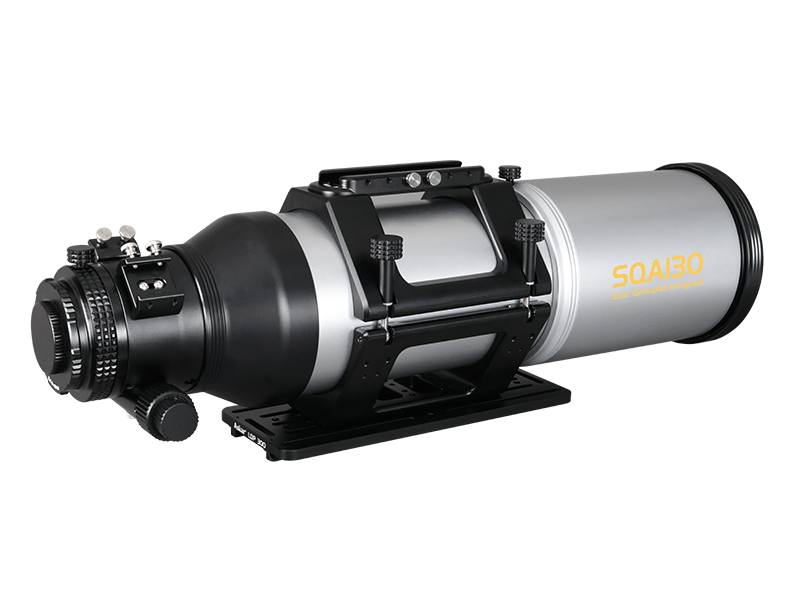

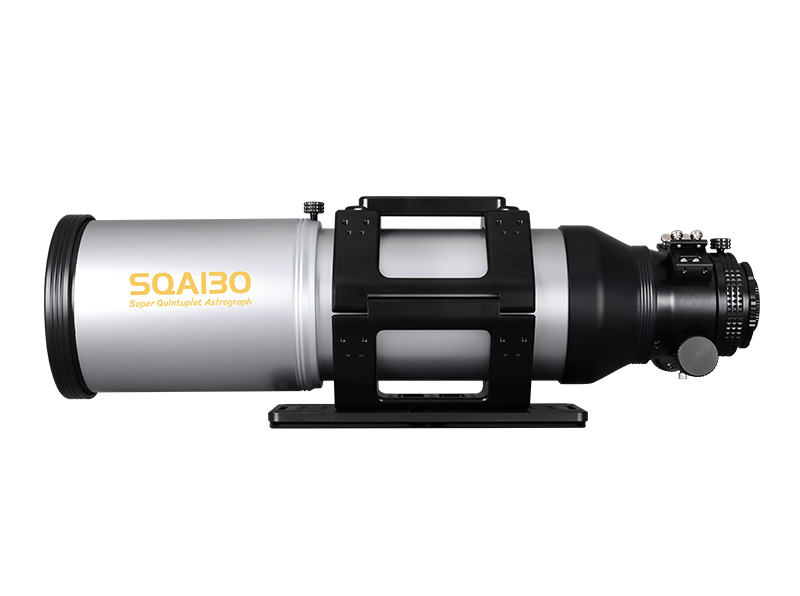

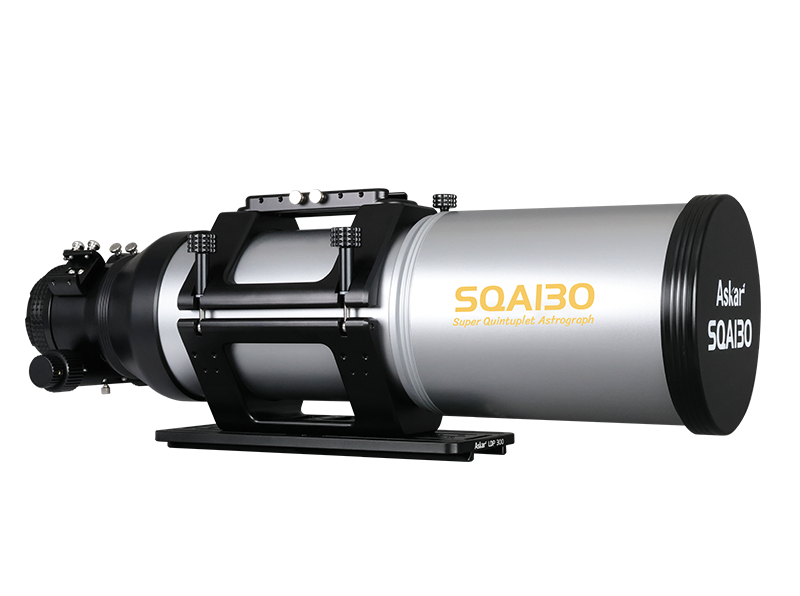

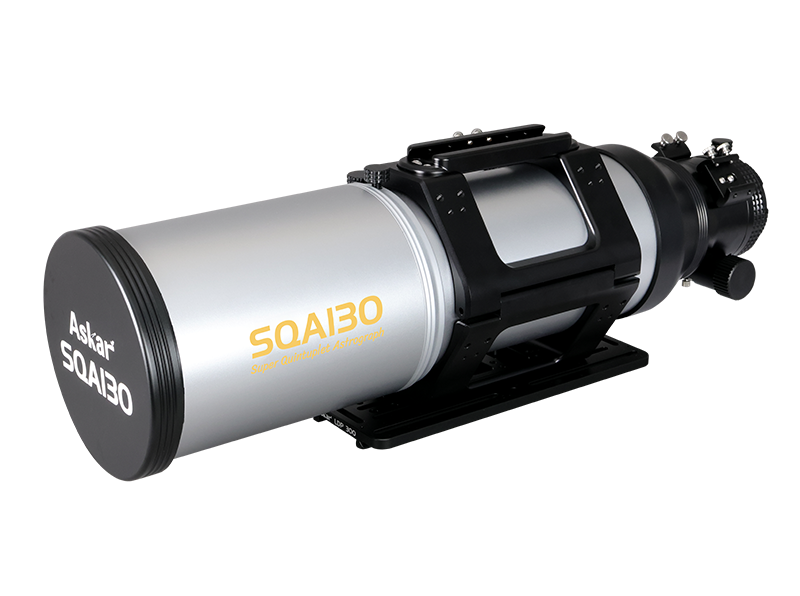

A 130mm Petzval-structure OTA, with quintuplet lens design and including 2 pieces of SD glass, offers exceptional sharp and round star points.
Specifications
| Parameters | ||
|
Aperture size |
130mm |
|
|
Focal length |
624mm |
|
|
Focal ratio |
f/4.8 |
|
|
Objective lens |
Quintuplet petzval APO（including two pieces of SD glass） |
|
|
Total length |
650mm(when the dew shield is contracted) |
|
|
Format specifications |
Medium format(55mm), covers full frame(44mm) |
|
|
OTA weight |
9.18kg |
|
|
Gross weight（including tube ring and dovetail plate） |
11.76kg |
|
|
Rear-end thread type |
M48/M54/M68 adapters |
|
|
Rear-end connection distance |
Support 46-76mm range (Recommended connection length is 55mm) |
|
|
Standard package items |
a SQA130 OTA, an Oxford cloth case |
|
