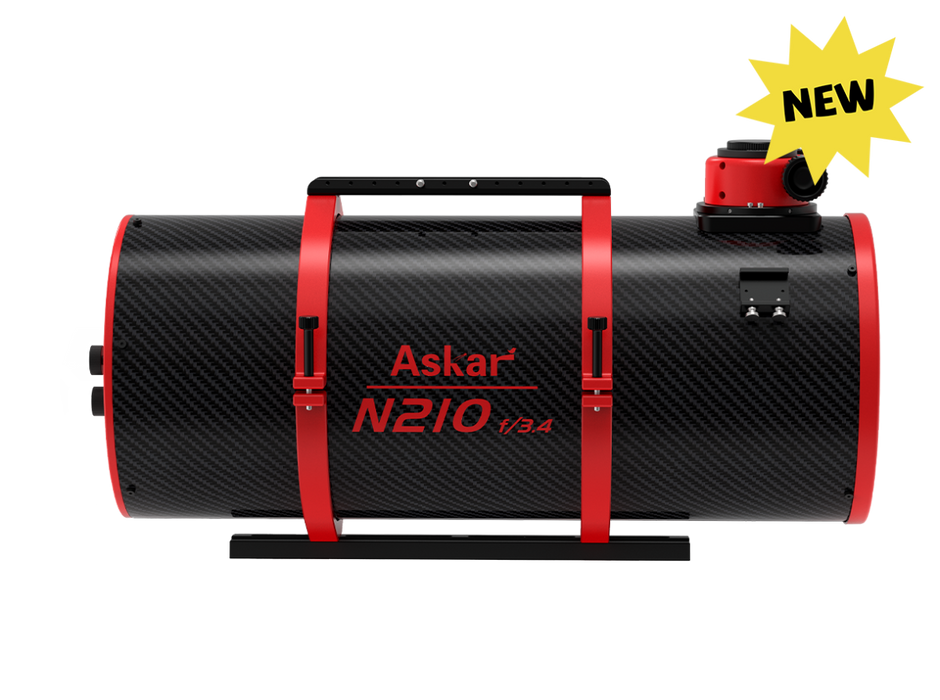

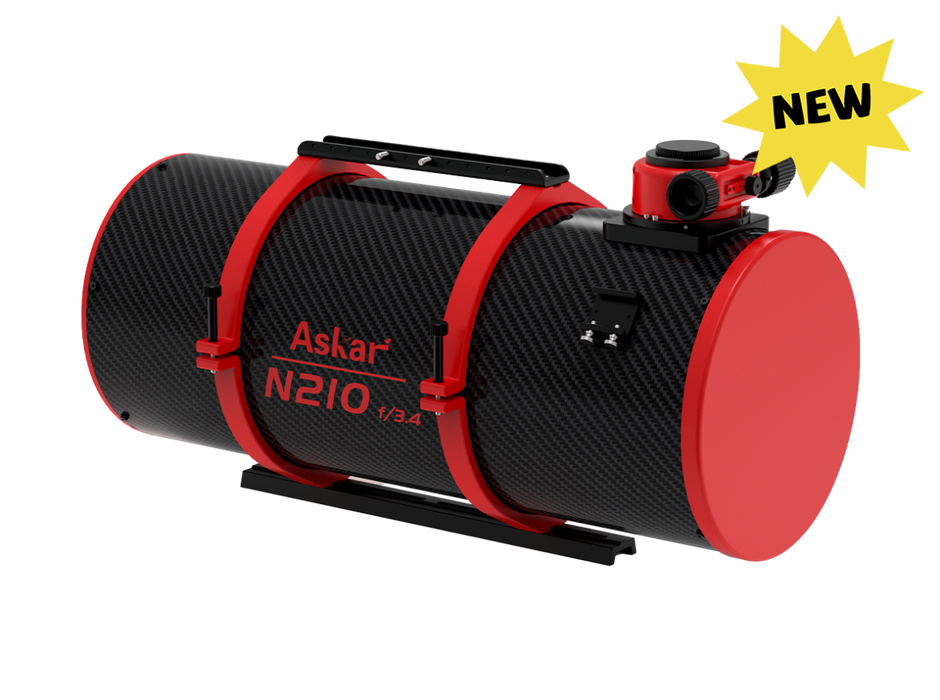

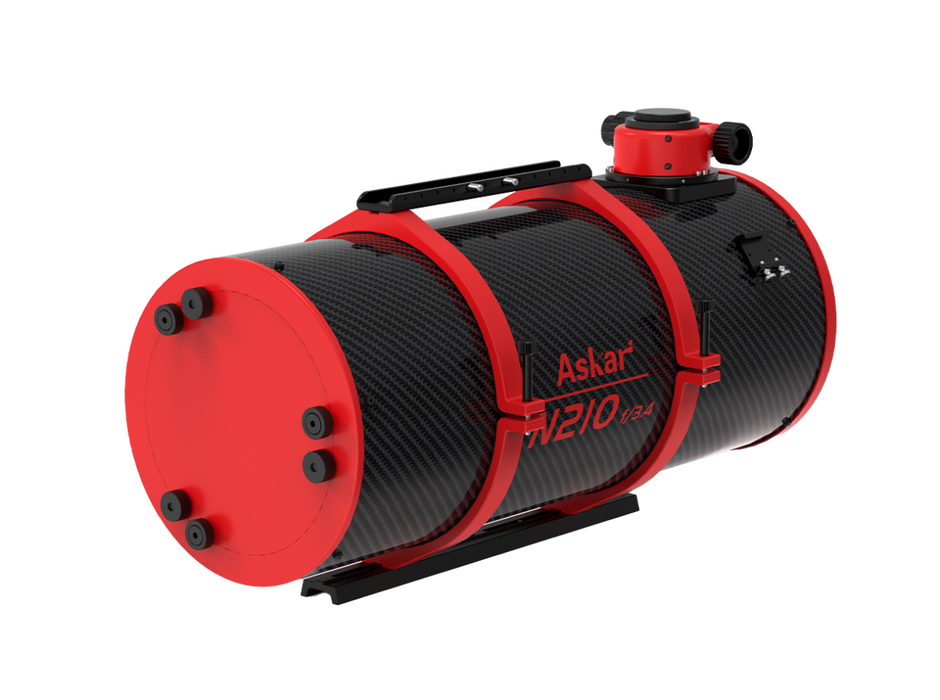

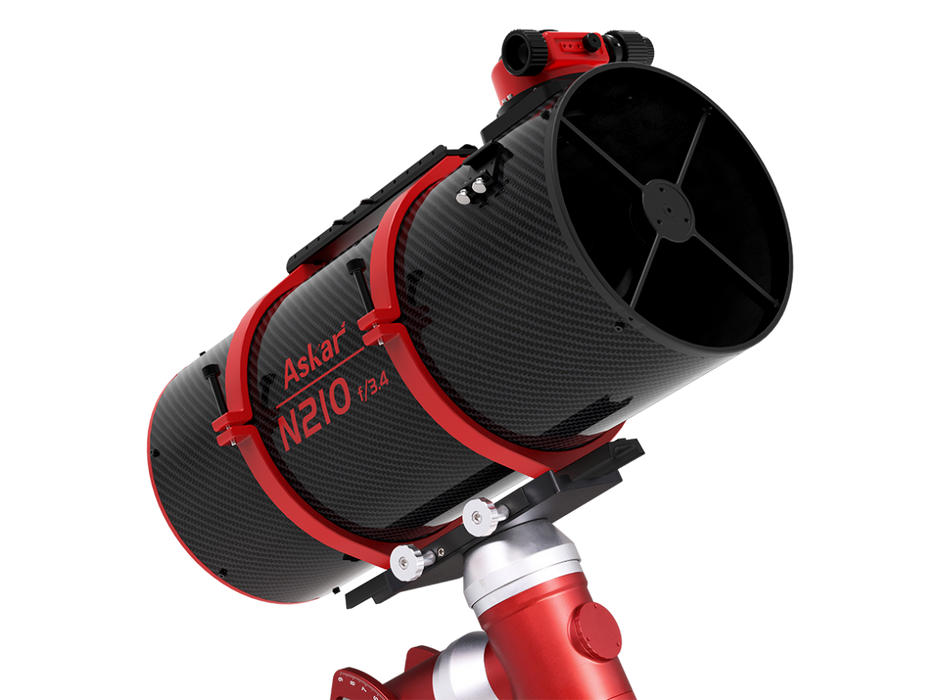

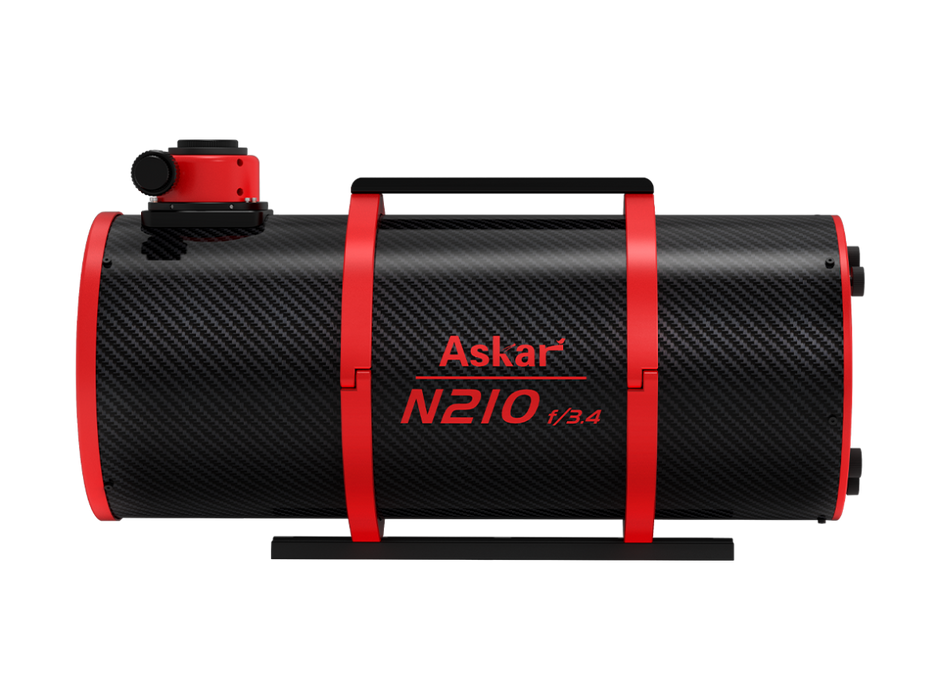

Following the Askar N160, ASKAR updates the same product line with a larger-aperture Newtonian reflector telescope—the Askar N210. This new model boosts the clear aperture to 210mm, and while retaining the solid craftsmanship and excellent handling of the N160, it further enhances light-gathering capability and imaging quality. Specifically designed for deep-sky astrophotographers who demand higher image quality, it offers a cost-effective choice for those looking to upgrade to a large-aperture Newtonian telescope.
Specifications
| Parameters | ||
|
Aperture size |
210mm |
|
|
Focal length |
756mm(without Corrector)/714mm(with Corrector) |
|
|
Focal ratio |
F3.6(without Corrector)/F3.4(with Corrector) |
|
|
Corrector reduction factor |
0.95× |
|
|
Corrector type |
Triplet design |
|
|
Primary mirror type |
Parabolic mirror |
|
|
Format specifications |
APS-C(28mm) |
|
|
Tube material |
Carbon fiber |
|
|
Secondary mirror short axis diameter |
71mm |
|
|
Lens tube outer diameter |
264mm |
|
|
Lens tube total length |
640mm |
|
|
OTA weight |
7.9kg |
|
|
Gross weight (including handle， tube ring， dovetail plate, and corrector) |
9.8kg | |
| Corrector weight | 0.22kg | |
| Resolution | 0.55 | |
| Back focus | 55mm（from the M48 thread） | |
| Rear-end thread type | Corrector end：M48*0.75 | |
| Standard package items |
a N210 OTA, a pair of tube rings, 400mm dovetail plate, multifunctional handle, 0.95×MPCC, manual, M58 to M48 adapter, 0.1mm shim *2, 0.2mm shim *2, 0.3mm shim *2 |
|
